Granja sensorizada

[vc_row thb_divider_position=»bottom»][vc_column][/vc_column][/vc_row][vc_row thb_full_width=»true» thb_divider_position=»bottom» css=».vc_custom_1657884943541{background-image: url(https://innogando.com/wp-content/uploads/2021/03/fondo-02.png?id=2638) !important;}»][vc_column][vc_column_text css=».vc_custom_1657879503138{padding-top: 15% !important;padding-bottom: 15% !important;}»]

Sensores en la granja

[/vc_column_text][/vc_column][/vc_row][vc_row thb_divider_position=»bottom» css=».vc_custom_1657882081800{padding-left: 5% !important;background-image: url(https://innogando.com/wp-content/uploads/2022/07/fondo-blanco.png?id=4112) !important;}»][vc_column width=»1/2″][vc_column_text css=».vc_custom_1657879546205{padding-top: 5% !important;}»]

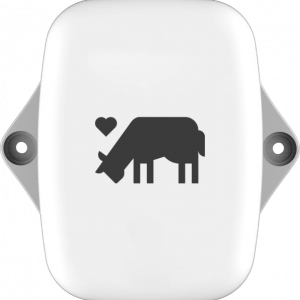

Sensor ambiental

[/vc_column_text][vc_column_text]

Medición de variables ambientales

[/vc_column_text][vc_row_inner][vc_column_inner width=»1/2″][vc_single_image image=»4114″ img_size=»medium»][vc_column_text css=».vc_custom_1657881655561{padding-top: 10% !important;}»]

Rango de temperatura -30ºC a 70ºC
Humedad 0% a 100% HR
Batería 5 años con 1 pila
Protección IP67
Dimensiones 88 x 87 x 27 mm[/vc_column_text][/vc_column_inner][vc_column_inner width=»1/2″][vc_column_text]

Variables

[/vc_column_text][vc_column_text css=».vc_custom_1657880332805{padding-left: 5% !important;}»]

Temperatura
Humedad

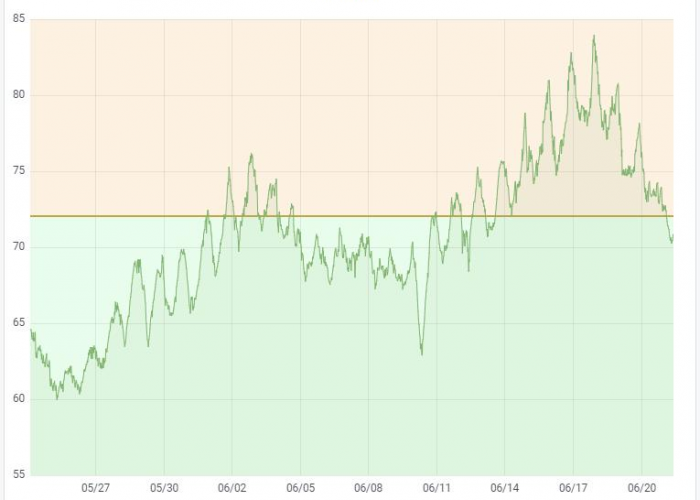

Índice THI[/vc_column_text][vc_column_text]

Interior y exterior
Alertas por tempetatura

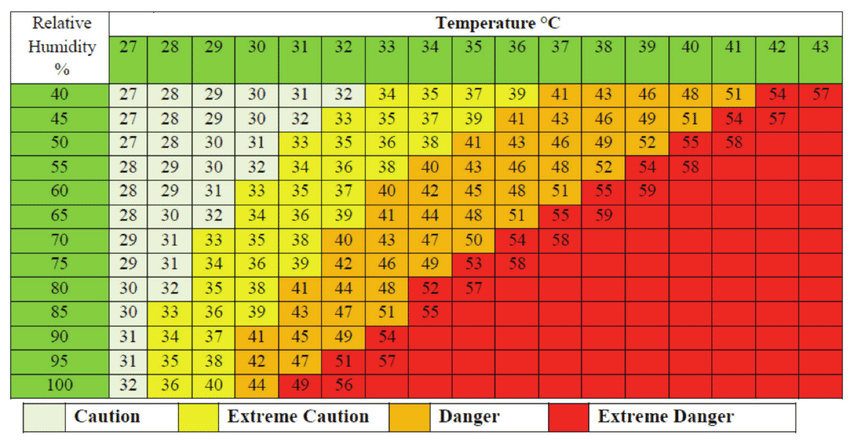

Alertas por estrés por calor[/vc_column_text][vc_single_image image=»4125″ img_size=»medium» css=».vc_custom_1657882732292{padding-left: 15% !important;}»][/vc_column_inner][/vc_row_inner][/vc_column][vc_column width=»1/2″][vc_single_image image=»4119″ img_size=»700×500″ css=».vc_custom_1657882087789{padding-top: 10% !important;}»][vc_single_image image=»4118″ img_size=»large»][/vc_column][/vc_row][vc_row thb_divider_position=»bottom» css=».vc_custom_1657882081800{padding-left: 5% !important;background-image: url(https://innogando.com/wp-content/uploads/2022/07/fondo-blanco.png?id=4112) !important;}»][vc_column width=»1/2″][vc_column_text css=».vc_custom_1657882447872{padding-top: 5% !important;}»]

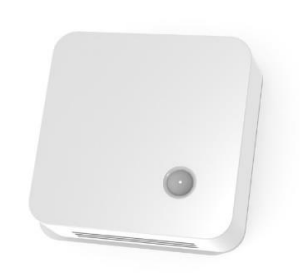

Sensor CO2

[/vc_column_text][vc_column_text]

Medida de CO2, temperatura, humedad y estrés por calor

[/vc_column_text][vc_row_inner][vc_column_inner width=»1/2″][vc_single_image image=»4123″ img_size=»medium»][vc_column_text css=».vc_custom_1657882580911{padding-top: 10% !important;}»]

Rango de temperatura 0ºC a 50ºC
Humedad 0% a 85% HR
Batería Hasta 10 años
Dimensiones 86 x 86 x 27 mm[/vc_column_text][/vc_column_inner][vc_column_inner width=»1/2″][vc_column_text]

Variables medidas

[/vc_column_text][vc_column_text css=».vc_custom_1657882497287{padding-left: 5% !important;}»]

CO2
Temperatura
Humedad
Índice THI[/vc_column_text][vc_column_text]

Interiores y atmósferas limpias

[/vc_column_text][vc_single_image image=»4125″ img_size=»medium» css=».vc_custom_1657882732292{padding-left: 15% !important;}»][/vc_column_inner][/vc_row_inner][/vc_column][vc_column width=»1/2″][vc_single_image image=»4119″ img_size=»700×500″ css=».vc_custom_1657882087789{padding-top: 10% !important;}»][vc_single_image image=»4118″ img_size=»large»][/vc_column][/vc_row][vc_row thb_divider_position=»bottom» css=».vc_custom_1657882081800{padding-left: 5% !important;background-image: url(https://innogando.com/wp-content/uploads/2022/07/fondo-blanco.png?id=4112) !important;}»][vc_column width=»3/4″][vc_column_text css=».vc_custom_1657882784608{padding-top: 5% !important;}»]

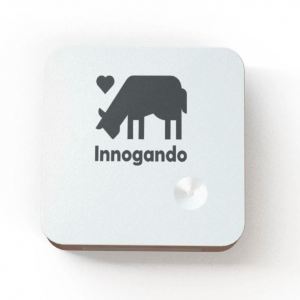

Sensor Luz y Sonido

[/vc_column_text][vc_column_text]

Medida de temperatura, humedad, luz, movimiento y sonido

[/vc_column_text][vc_row_inner][vc_column_inner width=»1/2″][vc_single_image image=»4127″ img_size=»medium»][vc_column_text css=».vc_custom_1657882968594{padding-top: 10% !important;}»]

Rango de temperatura 0ºC a 50ºC
Humedad 0% a 85% HR
Batería Hasta 10 años
Dimensiones 86 x 86 x 27 mm
Rango de luz 4 a 2000 Lux[/vc_column_text][/vc_column_inner][vc_column_inner width=»1/2″][vc_column_text]

Variables medidas

[/vc_column_text][vc_column_text css=».vc_custom_1657882839409{padding-left: 5% !important;}»]

Temperatura
Humedad
Índice THI
Luz
Sonido
Movimiento[/vc_column_text][vc_column_text]

Interiores y atmósferas limpias

[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][vc_column width=»1/2″][/vc_column][/vc_row][vc_row thb_divider_position=»bottom» css=».vc_custom_1657882081800{padding-left: 5% !important;background-image: url(https://innogando.com/wp-content/uploads/2022/07/fondo-blanco.png?id=4112) !important;}»][vc_column width=»11/12″][vc_column_text css=».vc_custom_1657882996455{padding-top: 5% !important;}»]

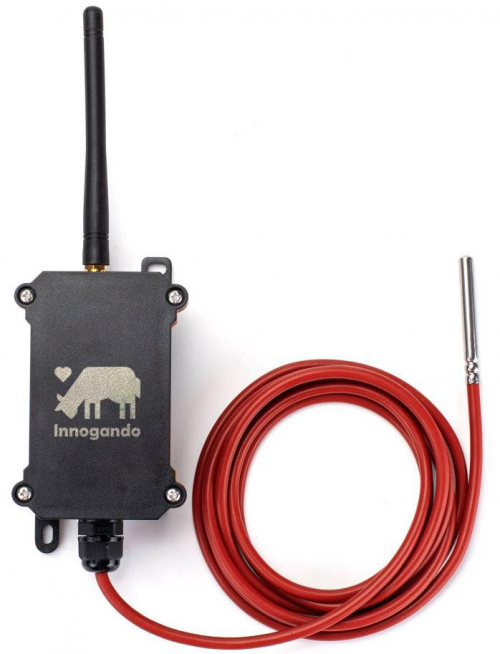

Sensor de temperatura de tanque

[/vc_column_text][vc_column_text]

Temperatura de tanque con sonda

[/vc_column_text][vc_row_inner][vc_column_inner width=»1/3″][vc_single_image image=»4129″ img_size=»full»][/vc_column_inner][vc_column_inner width=»1/3″][vc_column_text]

Características

[/vc_column_text][vc_column_text css=».vc_custom_1657883060469{padding-left: 5% !important;}»]

Temperatura del tanque en tiempo real
Alertas en caso de fallo[/vc_column_text][vc_column_text css=».vc_custom_1657886139327{padding-top: 10% !important;}»]

Rango de temperatura -55ºC a 125ºC
Batería Hasta 10 años
Protección IP67
 [/vc_column_text][/vc_column_inner][vc_column_inner width=»1/3″][vc_single_image image=»4132″ img_size=»full»][/vc_column_inner][/vc_row_inner][/vc_column][vc_column width=»1/2″][/vc_column][/vc_row][vc_row thb_divider_position=»bottom» css=».vc_custom_1657882081800{padding-left: 5% !important;background-image: url(https://innogando.com/wp-content/uploads/2022/07/fondo-blanco.png?id=4112) !important;}»][vc_column width=»11/12″][vc_column_text css=».vc_custom_1657884175237{padding-top: 5% !important;}»]

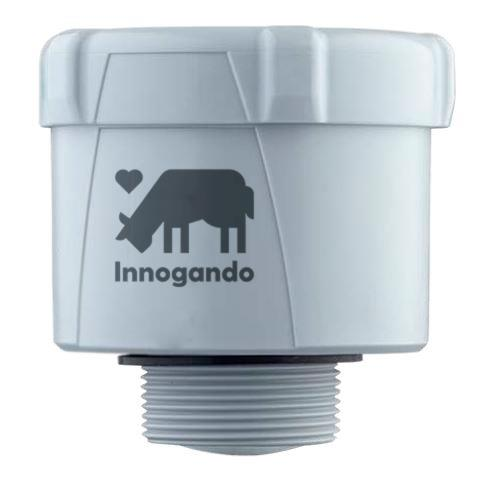

Sensores de nivel de silo

[/vc_column_text][vc_column_text]

Nivel de silo por radar

[/vc_column_text][vc_row_inner][vc_column_inner width=»1/2″][vc_single_image image=»4134″ img_size=»full»][vc_column_text css=».vc_custom_1657884406521{padding-left: 5% !important;}»]

Rango de medición 15m
Batería Hasta 10 años
Protección IP66[/vc_column_text][/vc_column_inner][vc_column_inner width=»1/2″][vc_column_text css=».vc_custom_1657884290093{padding-top: 10% !important;}»]

Medición de nivel de silo

[/vc_column_text][vc_column_text css=».vc_custom_1657884284120{padding-left: 5% !important;}»]

Alertas de nivel
Hasta 12 metros
Nivel de líquido
Nivel de purín
Nivel de pienso[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][vc_column width=»1/2″][/vc_column][/vc_row][vc_row thb_divider_position=»bottom» css=».vc_custom_1657882081800{padding-left: 5% !important;background-image: url(https://innogando.com/wp-content/uploads/2022/07/fondo-blanco.png?id=4112) !important;}»][vc_column width=»11/12″][vc_column_text css=».vc_custom_1657884175237{padding-top: 5% !important;}»]

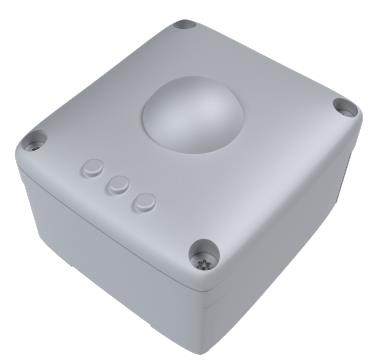

Sensores de nivel de silo

[/vc_column_text][vc_column_text]

Nivel de silo por radar

[/vc_column_text][vc_row_inner][vc_column_inner width=»1/2″][vc_single_image image=»4136″ img_size=»full»][vc_column_text css=».vc_custom_1657884538419{padding-left: 5% !important;}»]

Rango de medición 7m
Batería Hasta 5 años
Dimesiones 64 x 58 x 44 mm[/vc_column_text][/vc_column_inner][vc_column_inner width=»1/2″][vc_column_text css=».vc_custom_1657884290093{padding-top: 10% !important;}»]

Medición de nivel de silo

[/vc_column_text][vc_column_text css=».vc_custom_1657884504636{padding-left: 5% !important;}»]

Alertas de nivel
Hasta 7 metros
Nivel de líquido
Nivel de purín
Nivel de pienso[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][vc_column width=»1/2″][/vc_column][/vc_row][vc_row thb_divider_position=»bottom» css=».vc_custom_1657882081800{padding-left: 5% !important;background-image: url(https://innogando.com/wp-content/uploads/2022/07/fondo-blanco.png?id=4112) !important;}»][vc_column width=»11/12″][vc_column_text css=».vc_custom_1657884600786{padding-top: 5% !important;}»]

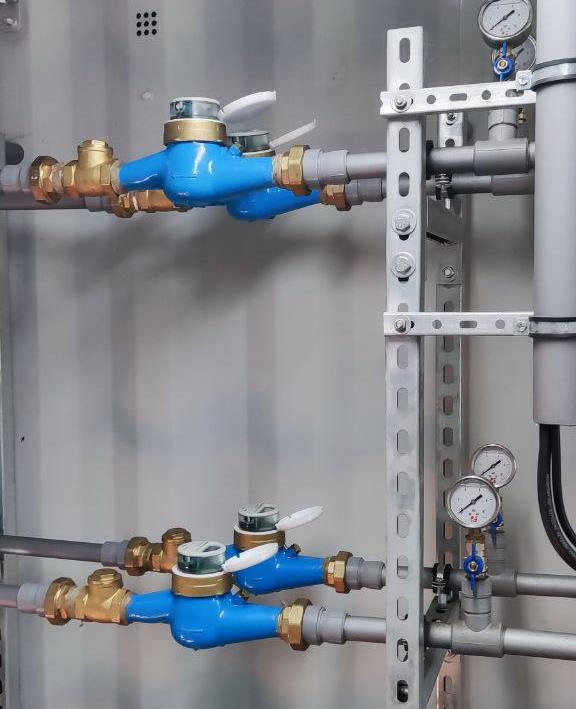

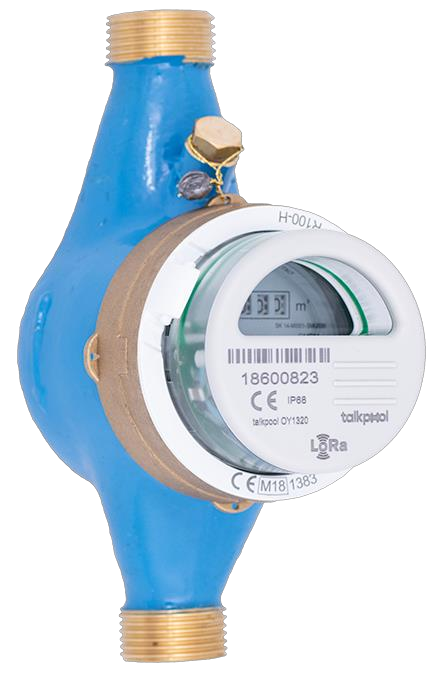

Sensor de contador de agua

[/vc_column_text][vc_column_text]

Medición de caudal de agua

[/vc_column_text][vc_row_inner][vc_column_inner width=»1/3″][vc_single_image image=»4138″ img_size=»full»][/vc_column_inner][vc_column_inner width=»1/3″][vc_column_text css=».vc_custom_1657884629334{padding-top: 10% !important;}»]

Variables medidas

[/vc_column_text][vc_column_text css=».vc_custom_1657884668886{padding-left: 5% !important;}»]

Medición de flujo de agua
Alertas de consumo
Alertas de rotura de tubería[/vc_column_text][vc_column_text css=».vc_custom_1657884725830{padding-left: 5% !important;}»]

Batería Hasta 10 años
Protección IP68[/vc_column_text][/vc_column_inner][vc_column_inner width=»1/3″][vc_single_image image=»4141″ img_size=»full»][/vc_column_inner][/vc_row_inner][/vc_column][vc_column width=»1/2″][/vc_column][/vc_row]
